PLC & CNC Wire Straightening and Cutting Machines

We are PLC wire cutting machine manufacturer in india. This machine is High precision machine with high accuracy in length and straightening. This machine is used for ultra thin wire. Especially used for Zinc plated wire, Nickel plated wire and galvanized coated wire without damaging surface. Machine can straight and cut up to 1500 NM tensile strength material without any burr. This machine is available in both Reel straightening system and Spinner straightening system.

  • MODEL : PLC-M 02
  • Wire Dia Capacity : From 0.5mm to 2mm
  • Cutting Length Capacity : From 5mm to 99999mm
  • Feeding Speed : Up to 35 mtrs/min
  • Power Required : 2 kw
  • Wire Material : MS/SS
  • Automation Type : PLC & Servo controlled
  • Approx weight NET : 350 kg

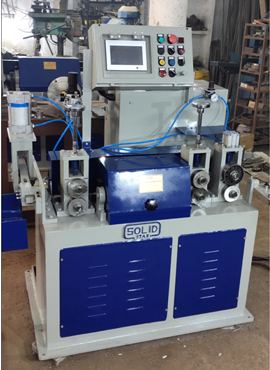

PLC Wire Straightening and Cutting Machines

This machine is controlled with servo system and fully computerized. Easiest to operate. Capacity is from 1.2mm to 6mm in mild steel, ss and spring steel. Minimum cutting length is 5mm and maximum is 99999mm. No need of any sensor or mechanical spring as in traditional machines.

  • MODEL : PLC-M 06
  • Wire Dia Capacity : From 1mm to 6mm
  • Cutting Length Capacity : From 5mm to 99999mm
  • Feeding Speed : Up to 40 mtrs/min
  • Power Required : 4.5 kw
  • Wire Material : MS/SS
  • Automation Type : PLC & Servo controlled
  • Approx weight NET : 500 kg
Wire Straightening Machine

We also manufacture CNC Wire Straightening Machines in india. These machines are of high production category in CNC. These machines are Economical in price with durable life.

  • MODEL : CNC-M 02
  • Wire Dia Capacity : From 0.5mm to 2mm
  • Cutting Length Capacity : From 5mm to 99999mm
  • Feeding Speed : Up to 70 mtrs/min
  • Power Required : 7.5 kw
  • Wire Material : MS/SS
  • Automation Type : CNC & Servo controlled
  • Approx weight NET : 600 kg

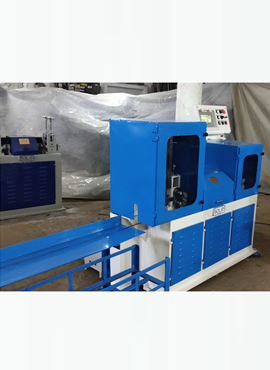

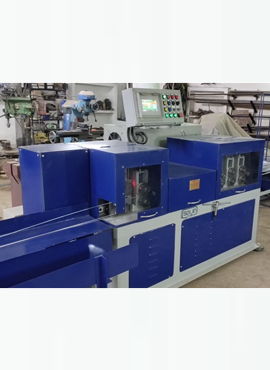

CNC Wire Straightening Machines

We also manufacture CNC Wire Straightening Machines in india. These machines are of high production category in CNC. These machines are Economical in price with durable life.

  • MODEL : CNC-M 06
  • Wire Dia Capacity : From 1mm to 6mm
  • Cutting Length Capacity : From 5mm to 99999mm
  • Feeding Speed : Up to 80 mtrs/min
  • Power Required : 10 kw
  • Wire Material : MS/SS
  • Automation Type : CNC & Servo controlled
  • Approx weight NET : 800 kg
CNC Wire Straightening Machines
